ICS840021 - CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER

General Description

The ICS840021 is a Gigabit Ethernet Clock Generator and a member of the HiPerClocksTM HiPerClockS™ family of high performance devices from ICS.

The ICS840021 uses a 25MHz crystal to synthesize 125MHz.

20MHz integration

Key Features

  • 1 LVCMOS/LVTTL output, 7Ω output impedence.
  • Crystal oscillator interface designed for 25MHz, 18pF parallel resonant crystal.
  • Output frequency: 125MHz.
  • VCO range: 560MHz to 680MHz.
  • RMS phase jitter @ 125MHz, using a 25MHz crystal (1.875MHz - 20MHz): 0.34ps (typical).
  • RMS phase noise at 125MHz (typical) Phase noise: Offset Noise Power 100Hz -96.9 dBc/Hz 1KHz -122.2 dBc/Hz 10KHz -131.1 dBc/Hz 100KHz -129.5 dBc/Hz.
  • 3.3V operating su.

📥 Download Datasheet

Datasheet Details

Part number ICS840021
Manufacturer Integrated Circuit Systems
File Size 240.15 KB
Description CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
Datasheet download datasheet ICS840021 Datasheet

Other Datasheets by Integrated Circuit Systems

Part Number Description
ICS840021I CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
ICS840022 CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
ICS840024I CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
ICS840001 CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
ICS840001-31 CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
ICS840001-32 CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
ICS840001-34 CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
ICS840001I CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
ICS840002-01 CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
ICS840002-32 CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

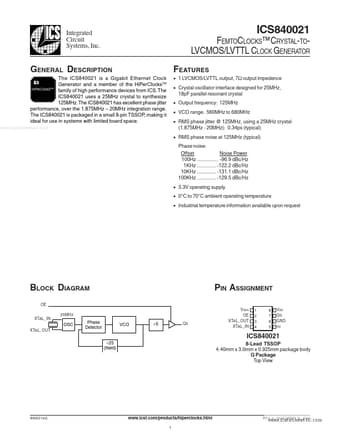

Integrated Circuit Systems, Inc. ICS840021 FEMTOCLOCKS™ CRYSTAL-TOLVCMOS/LVTTL CLOCK GENERATOR FEATURES • 1 LVCMOS/LVTTL output, 7Ω output impedence • Crystal oscillator interface designed for 25MHz, 18pF parallel resonant crystal • Output frequency: 125MHz • VCO range: 560MHz to 680MHz • RMS phase jitter @ 125MHz, using a 25MHz crystal (1.875MHz - 20MHz): 0.34ps (typical) • RMS phase noise at 125MHz (typical) Phase noise: Offset Noise Power 100Hz ............... -96.9 dBc/Hz 1KHz .............. -122.2 dBc/Hz 10KHz .............. -131.1 dBc/Hz 100KHz .............. -129.5 dBc/Hz • 3.
