ICS843004I - FEMTOCLOCKS- CRYSTAL-TO- 3.3V 2.5V LVPECL FREQUENCY SYNTHESIZER

📥 Download Datasheet

Datasheet Details

Part number ICS843004I
Manufacturer Integrated Circuit Systems
File Size 281.91 KB
Description FEMTOCLOCKS- CRYSTAL-TO- 3.3V 2.5V LVPECL FREQUENCY SYNTHESIZER
Datasheet download datasheet ICS843004I Datasheet

General Description

The ICS843004I is a 4 output LVPECL synthesizer optimized to generate Fibre Channel reference HiPerClockS™ clock frequencies and is a member of the HiPerClocksTM family of high performance clock solutions from ICS.

Using a 26.5625MHz 18pF parallel resonant crystal, the following frequencies can be generated based on the 2 frequency select pins (F_SEL[1:0]): 212.5MHz, 187.5MHz, 159.375MHz, 156.25MHz, 106.25MHz, and 53.125MHz.

The ICS843004I uses ICS’ 3rd generation low phase noise VCO technology and can achieve 1ps or lower typical rms phase jitter, easily meeting Fibre Channel jitter requirements.

Overview

Integrated Circuit Systems, Inc.

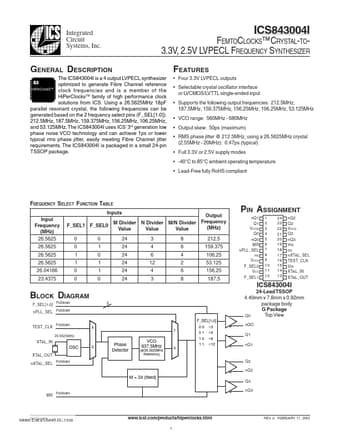

ICS843004I www.DataSheet4U.com FEMTOCLOCKS™ CRYSTAL-TO3.3V, 2.

Key Features

  • Four 3.3V LVPECL outputs.
  • Selectable crystal oscillator interface or LVCMOS/LVTTL single-ended input.
  • Supports the following output frequencies: 212.5MHz, 187.5MHz, 159.375MHz, 156.25MHz, 106.25MHz, 53.125MHz.
  • VCO range: 560MHz - 680MHz.
  • Output skew: 50ps (maximum).
  • RMS phase jitter @ 212.5MHz, using a 26.5625MHz crystal (2.55MHz - 20MHz): 0.47ps (typical).
  • Full 3.3V or 2.5V supply modes.
  • -40°C to 85°C ambient operating tem.
