ICS9248-110 Frequency Generator & Integrated Buffers

PIN NUMBER 2, 1 3 4 5 6, 12 7 17, 16, 14, 13, 11, 10, 8 9, 15 18 20, 19 21 34 33 22 23 24 25 26 27 28 29 30 31 32 46 34 35, 44 42, 39, 36 43, 40, 37 38, 41 45 47 48 PIN NAME FS (1:0) REF (1:0) GNDREF X1 X2 GNDPCI PCICLK_F PCICLK (6:0) VDDPCI VDDAGP AGP (1:0) GNDAGP VDD GND VDD48 48MHz SEL24-48# 24-.

ICS9248-110 Features

* 3 differential pair open drain CPU clocks (2.7V external pull-up; up to 150MHz achieviable through I2C)

* 2 - AGPCLK @ 3.3V

* 8 - PCI @3.3V, including 1 free running

* 1 - 48MHz @ 3.3V

* 1 - 24/48MHz @ 3.3V

* 2- REF @3.3V, 14.318MHz. Features:

ICS9248-110 Datasheet (152.93 KB)

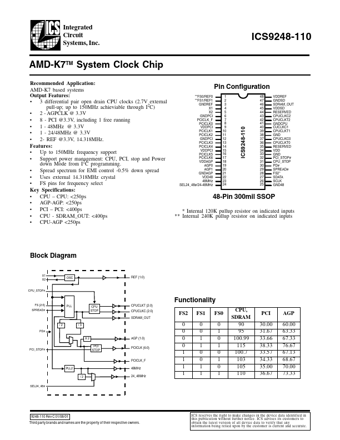

ICS9248-110 Datasheet Preview — Preview of ICS9248-110 PDF
