MK2703B

PLL AUDIO CLOCK SYNTHESIZER

MK2703B Features

* Packaged in 8-pin SOIC

* Available in Pb (lead) free package

* Uses an inexpensive, fundamental mode crystal or clock

* Patented zero ppm synthesis error in all clocks All frequencies are frequency locked Advanced, low power

MK2703B General Description

The MK2703B is a low-cost, low-jitter, high performance PLL clock synthesizer designed to replace oscillators and PLL circuits in set-top box and multimedia systems. Using ICS’ patented analog Phase Locked Loop (PLL) techniques, the device uses a 27 MHz crystal or clock input to produce a buffered r.

MK2703B Datasheet (154.86 KB)

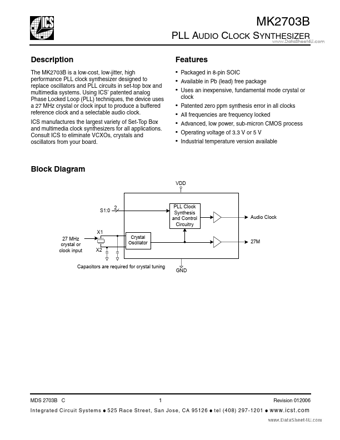

Preview of MK2703B PDF

Datasheet Details

Part number:

MK2703B

Manufacturer:

Integrated Circuit Systems

File Size:

154.86 KB

Description:

Pll audio clock synthesizer.
