MK3230-01STR Datasheet - Integrated Circuit Systems

MK3230-01STR Portable System Clock Synthesizer

The MK3230 is the smallest size, lowest power system clock synthesizer available. It is the ideal way to generate clocks for portable computers, PDAs, and other devices where low power is required. Using analog Phase-Locked Loop (PLL) techniques, the device operates from a single 32.768 kHz crystal .

MK3230-01STR Features

* Packaged in 16 pin narrow (0.150”) SOIC

* Input crystal frequency of 32.768 kHz

* Lowest power solution available

* Lowest profile clock solution where height is critical

* Output clock frequencies up to 80 MHz

* Five output clocks

* 3.3V or

MK3230-01STR Datasheet (68.34 KB)

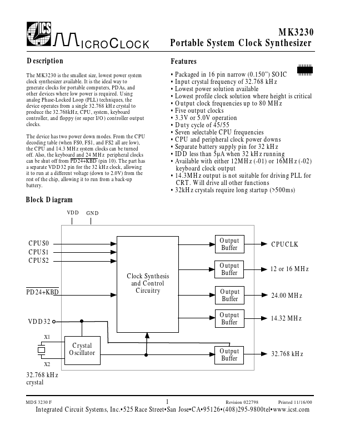

MK3230-01STR Datasheet Preview — Preview of MK3230-01STR PDF

Datasheet Details

Part number:

MK3230-01STR

Manufacturer:

Integrated Circuit Systems

File Size:

68.34 KB

Description:

Portable system clock synthesizer.
