MK3727 LOW COST 24 - 36 MHZ 3.3 VOLT VCXO

Integrated Circuit Systems

Description

MK3727 LOW COST 24 - 36 MHZ 3.3 VOLT VCXO .
The MK3727 series of devices include the original MK3727S, MK3727A, and the new MK3727C and MK3727D.

📥 Download Datasheet

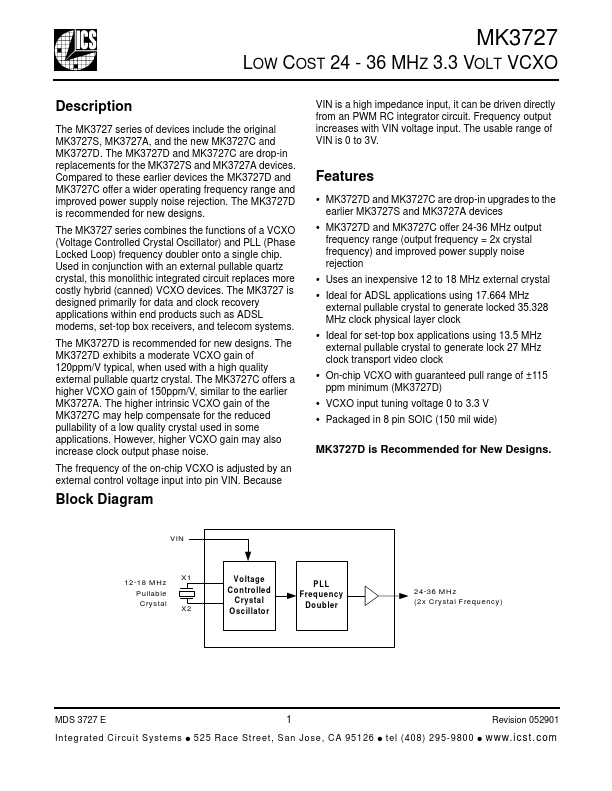

MK3727 Datasheet Preview — Preview of MK3727 PDF

Datasheet Specifications

Part number: MK3727
Manufacturer: Integrated Circuit Systems
File Size: 79.53 KB
Datasheet: MK3727_IntegratedCircuitSystems.pdf
Description: LOW COST 24 - 36 MHZ 3.3 VOLT VCXO

Features

* MK3727D and MK3727C are drop-in upgrades to the earlier MK3727S and MK3727A devices
* MK3727D and MK3727C offer 24-36 MHz output frequency range (output frequency = 2x crystal frequency) and improved power supply noise rejection
* Uses an inexpensive 12 to 18 MHz external

Applications

* within end products such as ADSL modems, set-top box receivers, and telecom systems. The MK3727D is recommended for new designs. The MK3727D exhibits a moderate VCXO gain of 120ppm/V typical, when used with a high quality external pullable quartz crystal. The MK3727C offers a higher VCXO gain of 150
