IDT72V815, CMOS FIFO memories

3.3 VOLT CMOS DUAL SyncFIFO™ DUAL 256 x 18, DUAL 512 x 18, DUAL 1,024 x 18, DUAL 2,048 x 18 and DUAL 4,096 x 18 IDT72V805 IDT72V815 IDT72V825 IDT72V8.
The IDT72V805/72V815/72V825/72V835/72V845 are dual 18-bit-wide synchronous (clocked) First-in, First-out (FIFO) memories designed to run off a 3.

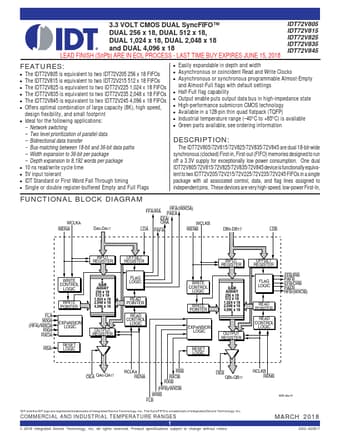

datasheet Preview Page 1 from Datasheet4u.com

IDT72V815_IntegratedDeviceTechnology.pdf

IDT72V815 Datasheet Preview — Preview of IDT72V815 PDF

Datasheet Details

Part number:

IDT72V815

Manufacturer:

Integrated Device Tech

File Size:

193.68 KB

Description:

CMOS FIFO memories

Features

* The IDT72V805 is equivalent to two IDT72V205 256 x 18 FIFOs The IDT72V815 is equivalent to two IDT72V215 512 x 18 FIFOs The IDT72V825 is equivalent to two IDT72V225 1,024 x 18 FIFOs The I

Applications

* Network switching
* Two level prioritization of parallel data
* Bidirectional data transfer
* Bus-matching between 18-bit and 36-bit data paths
* Width expansion to 36-bit per package
* Depth expansion to 8,192 words per package 10 ns read/write cyc
