IDT74FCT3574A

3.3V CMOS OCTAL D REGISTERS (3-STATE)

IDT74FCT3574A Features

* 0.5 MICRON CMOS Technology

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)

* 25 mil Center SSOP Packages

* Extended commercial range of -40°C to +85°C

* VCC = 3.3V ± 0.3V, Normal Range or VCC = 2.7V to 3.6V, Extende

IDT74FCT3574A General Description

The FCT3574/A are 8-bit registers built using an advanced dual metal CMOS technology. These registers consist of eight D-type flip-flops with a buffered common clock and buffered 3-state output control. When the output (OE) input is LOW, the eight outputs are enabled. When the OE input is HIGH, the.

IDT74FCT3574A Datasheet (108.92 KB)

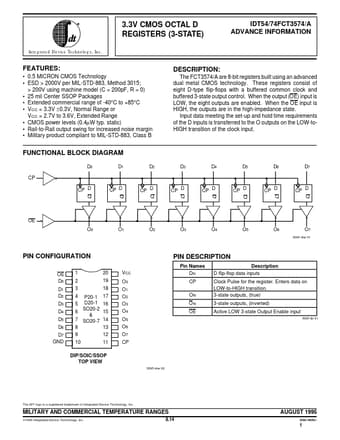

Preview of IDT74FCT3574A PDF

Datasheet Details

Part number:

IDT74FCT3574A

Manufacturer:

Integrated Device Tech

File Size:

108.92 KB

Description:

3.3v cmos octal d registers (3-state).
