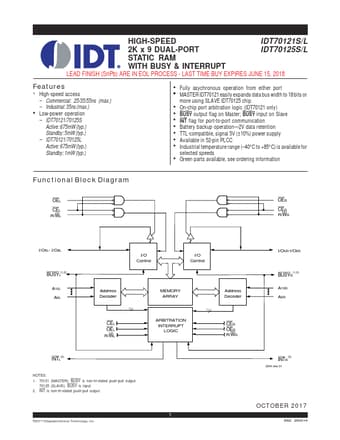

Preview of IDT70121L PDF
IDT70121L Datasheet Preview Page 2 IDT70121L Datasheet Preview Page 3

Datasheet Details

Part number:

IDT70121L

Manufacturer:

Integrated Device Technology

File Size:

175.18 KB

Description:

High-speed 2k x 9 dual-port static ram.

IDT70121L, HIGH-SPEED 2K x 9 DUAL-PORT STATIC RAM

The IDT70121/IDT70125 are high-speed 2K x 9 Dual-Port Static RAMs.

The IDT70121 is designed to be used as a stand-alone 9-bit Dual-Port RAM or as a “MASTER” Dual-Port RAM together with the IDT70125 “SLAVE” Dual-Port in 18bit-or-more word width systems.

Using the IDT MASTER/ SLAVE Dual-Port RAM appr

IDT70121L Features

* High-speed access

* Commercial: 25/35/45/55ns (max.)

* Low-power operation

* IDT70121/70125S Active: 500mW (typ.) Standby: 5mW (typ.)

* IDT70121/70125L Active: 500mW (typ.) Standby: 1mW (typ.)

* Fully asychronous operation from either port
