IDT72T36105 - HIGH-SPEED TeraSync FIFO

Integrated Device Technology

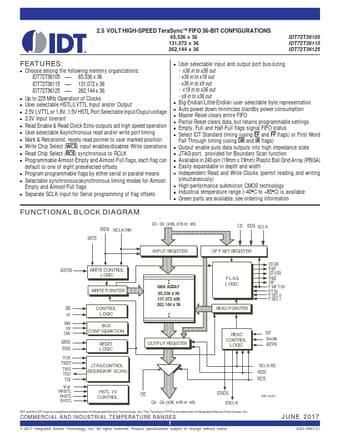

IDT72T36105 Datasheet Preview — Preview of IDT72T36105 PDF

Datasheet Details

Part number	IDT72T36105
Manufacturer	Integrated Device Technology
File Size	362.64 KB
Description	HIGH-SPEED TeraSync FIFO
Datasheet	IDT72T36105_IntegratedDeviceTechnology.pdf

IDT72T36105 Product details

Description

The IDT72T3645/72T3655/72T3665/72T3675/72T3685/72T3695/ 72T36105/72T36115/72T36125 are exceptionally deep, extrememly high speed, CMOS First-In-First-Out (FIFO) memories with clocked read and write controls and a flexible Bus-Matching x36/x18/x9 data flow. Flexible x36/x18/x9 Bus-Matching on both read and write ports A user selectable MARK location for retransmit User selectable I/O structure for HSTL or LVTTL

Features

Choose among the following memory organizations: IDT72T3645  1,024 x 36 IDT72T3655  2,048 x 36 IDT72T3665  4,096 x 36 IDT72T3675  8,192 x 36 IDT72T3685  16,384 x 36 IDT72T3695  32,768 x 36 IDT72T36105  65,536 x 36 IDT72T36115  131,072 x 36 IDT72T36125  262,144 x 36 Up to 225 MHz Operation of Clocks User selectable HSTL/LVTTL Input and/or Output 2.5V LVTTL.
