IDT74LVC138A - 3.3V CMOS 3-LINE TO 8-LINE DECODER/DEMULTIPLEXER

Description

DRIVE

Integrated Device Technology

Datasheet Details

Part number	IDT74LVC138A
Manufacturer	Integrated Device Technology
File Size	116.81 KB
Description	3.3V CMOS 3-LINE TO 8-LINE DECODER/DEMULTIPLEXER
Datasheet	IDT74LVC138A Datasheet
Additional preview pages of the IDT74LVC138A datasheet.

📁 Similar Datasheet

IDT74LVC11A - 3.3V CMOS TRIPLE 3-INPUT AND GATE WITH 5 VOLT TOLERANT I/O (Integrated Device)
IDT74LVC125A - 3.3V CMOS QUADRUPLE BUS BUFFER GATE WITH 3-STATE OUTPUTS AND 5 VOLT TOLERANT I/O (Integrated Device)
IDT74LVC162244A - 3.3V CMOS 16-BIT BUFFER/DRIVER (Integrated Device)
IDT74LVC162244A - 3.3V CMOS 16-BIT BUFFER/DRIVER (Renesas)
IDT74LVC162245A - CMOS 16-BIT BUS TRANSCEIVER (Renesas)
IDT74LVC162245A - 3.3V CMOS 16-BIT BUS TRANSCEIVER (Integrated Device)
IDT74LVC16244A - 3.3V CMOS 16-BIT BUFFER/DRIVER (Renesas)
IDT74LVC16245A - 3.3V CMOS 16-BIT BUS TRANSCEIVER (Integrated Device)
IDT74LVC16245A - 3.3V CMOS 16-BIT BUS TRANSCEIVER (Renesas)
IDT74LVC16823A - CMOS 18-BIT REGISTER (IDT)

Other Datasheets by Integrated Device Technology

IDT74LVC157A - 3.3V CMOS QUAD 2-LINE TO 1-LINE DATA SELECTOR/MULTIPLEXER / 5 VOLT TOLERANT I/O
IDT74LVC162374A - 3.3V CMOS 16-Bit EDGE Triggered D-Type F-F
IDT74LVC16244A - 3.3V CMOS 16-BIT BUFFER/DRIVER
IDT74LVC16373A - 3.3V CMOS 16-BIT TRANSPARENT D-TYPE LATCH
IDT74LVC16374A - 3.3V CMOS 16-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOP
IDT74LVC16601A - 3.3V CMOS 18-BIT UNIVERSAL BUS TRANSCEIVER
IDT74LVC16646A - 3.3V CMOS 16-BIT BUS TRANSCEIVER/REGISTER
IDT74LVC1G86 - 3.3V CMOS SINGLE 2-INPUT EXCLUSIVE-OR GATE

Full PDF Text Transcription

Click to expand full text

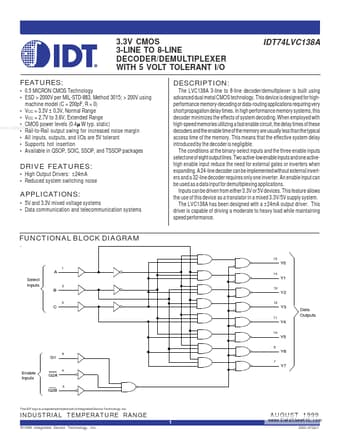

IDT74LVC138A 3.3V CMOS 3-LINE TO 8-LINE DECODER/DEMULTIPLEXER INDUSTRIAL TEMPERATURE RANGE 3.3V CMOS 3-LINE TO 8-LINE DECODER/DEMULTIPLEXER WITH 5 VOLT TOLERANT I/O • 0.5 MICRON CMOS Technology • ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) • VCC = 3.3V ± 0.3V, Normal Range • VCC = 2.7V to 3.6V, Extended Range • CMOS power levels (0.4µ W typ. static) www.DataSheet4U.com • Rail-to-Rail output swing for increased noise margin • All inputs, outputs, and I/Os are 5V tolerant • Supports hot insertion • Available in QSOP, SOIC, SSOP, and TSSOP packages IDT74LVC138A FEATURES: DESCRIPTION: DRIVE FEATURES: APPLICATIONS: • High Output Drivers: ±24mA • Reduced system switching noise • 5V and 3.

Published: Sep 19, 2008 |
