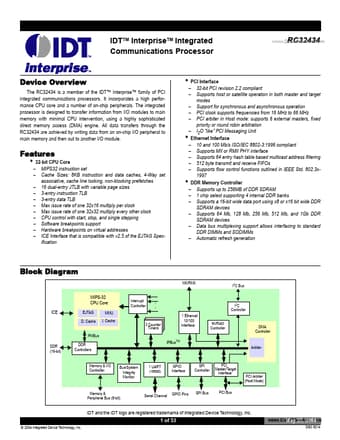

RC32434 IDT Interprise Integrated Communications Processor

IDTTM InterpriseTM Integrated Communications Processor www.DataSheet4U.com RC32434 Device Overview The RC32434 is a member of the IDT™ Interprise™ family of PCI integrated communications processors. It incorporates a high performance CPU core and a number of on-chip peripherals. The integrated processor is designed to transfer information from I/O modules to main memory with minimal CPU intervention, using a highly sophisticated direct memory access (DMA) engine. All data transfers through th.

RC32434 Features

* 32-bit CPU Core

* MIPS32 instruction set

* Cache Sizes: 8KB instruction and data caches, 4-Way set associative, cache line locking, non-blocking prefetches

* 16 dual-entry JTLB with variable page sizes

* 3-entry instruction TLB

* 3-entry data TLB
