IDT54FCT138T - FAST CMOS 1-OF-8 DECODER WITH ENABLE

Product Overview

Integrated Device

📥 Download Datasheet

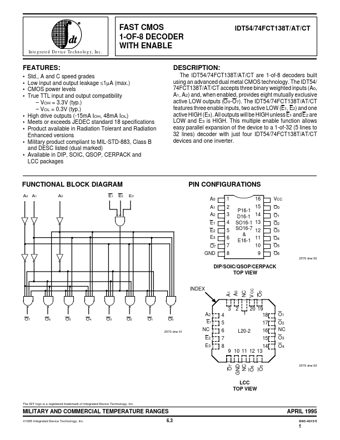

IDT54FCT138T FAST CMOS 1-OF-8 DECODER WITH ENABLE by Integrated Device - Datasheet Preview — Datasheet preview – IDT54FCT138T

Datasheet Details

Part number	IDT54FCT138T
Manufacturer	Integrated Device
File Size	106.79 KB
Description	FAST CMOS 1-OF-8 DECODER WITH ENABLE
Datasheet	IDT54FCT138T Datasheet
Additional preview pages of the IDT54FCT138T datasheet.

Product details

Description

IDT54/74FCT138T/AT/CT

Features

Std. , A and C speed grades Low input and output leakage ≤1µA (max. ) CMOS power levels True TTL input and output compatibility.
VOH = 3.3V (typ. ).
VOL = 0.3V (typ. ) High drive outputs (-15mA IOH, 48mA IOL) Meets or exceeds JEDEC standard 18 specifications Product available in Radiation Tolerant and Radiation Enhanced versions Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked) Available in DIP, SOIC, QSOP, CER.
