IDT54FCT162260ET FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER

Integrated Device

Description

FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER Integrated Device Technology, Inc.IDT54/74FCT16260AT/CT/ET IDT54/74FCT162260AT/CT/ET .
The FCT16260AT/CT/ET and the FCT162260AT/CT/ET Tri-Port Bus Exchangers are high-speed 12-bit latched bus multiplexers/transceivers for use in high-sp.

📥 Download Datasheet

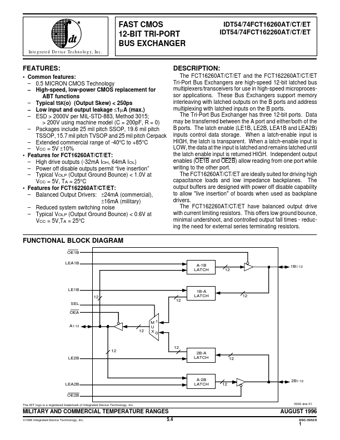

IDT54FCT162260ET Datasheet Preview — Preview of IDT54FCT162260ET PDF

Datasheet Specifications

Part number: IDT54FCT162260ET
Manufacturer: Integrated Device
File Size: 132.18 KB
Datasheet: IDT54FCT162260ET_IntegratedDeviceTechnology.pdf
Description: FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER

Features

* Common features:
* 0.5 MICRON CMOS Technology
* High-speed, low-power CMOS replacement for ABT functions
* Typical tSK(o) (Output Skew) < 250ps
* Low input and output leakage ≤1µ A (max. )
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using mach

Applications

* These Bus Exchangers support memory interleaving with latched outputs on the B ports and address multiplexing with latched inputs on the B ports. The Tri-Port Bus Exchanger has three 12-bit ports. Data may be transferred between the A port and either/both of the B ports. The latch enable (LE1B, LE2
