IDT54FCT646AT - FAST CMOS OCTAL TRANSCEIVER/REGISTERS

Integrated Device

📥 Download Datasheet

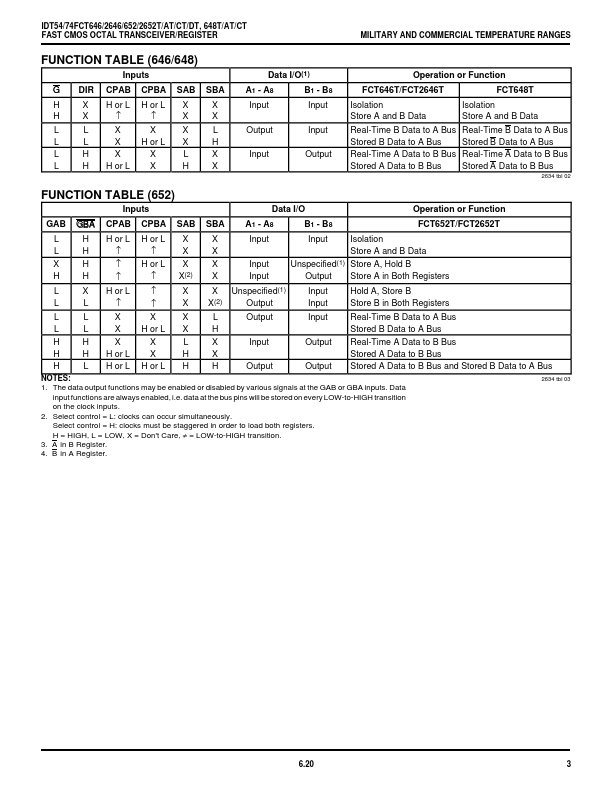

IDT54FCT646AT Datasheet Preview — Preview of IDT54FCT646AT PDF

Datasheet Details

Part number	IDT54FCT646AT
Manufacturer	Integrated Device
File Size	189.09 KB
Description	FAST CMOS OCTAL TRANSCEIVER/REGISTERS
Datasheet	IDT54FCT646AT_IntegratedDeviceTechnology.pdf

IDT54FCT646AT Product details

Description

The FCT646T/FCT2646T/FCT648T/FCT652T/2652T consist of a bus transceiver with 3-state D-type flip-flops and control circuitry arranged for multiplexed transmission of data directly from the data bus or from the internal storage registers.

Features

FCT646T/648T/652T:.
Std. , A, C and D speed grades.
High drive outputs (-15mA IOH, 64mA IOL).
Power off disable outputs permit “live insertion”.
Features for FCT2646T/2652T:.
Std. , A, and C speed grades.
Resistor outputs (-15mA IOH, 12mA IOL Com. ) (-12mA IOH, 12mA IOL Mil. ).
Reduced system switching noise.
