IDT74FST163209 Datasheet - Integrated Device

IDT74FST163209 9-BIT BUS EXCHANGE SWITCH

The FST163209 belongs to IDT's family of Bus switches. Bus switch devices perform the function of connecting or isolating two ports without providing any inherent current sink or source capability. Thus they generate little or no noise of their own while providing a low resistance path for an exte.

IDT74FST163209 Features

* Bus switches provide zero delay paths

* Extended commercial range of

* 40°C to +85°C

* Low switch on-resistance: FST163xxx

* 4Ω

* TTL-compatible input and output levels

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C

IDT74FST163209_IntegratedDeviceTechnology.pdf

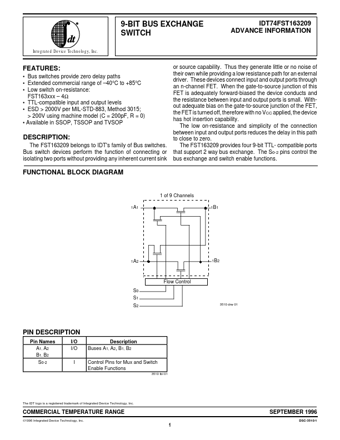

Preview of IDT74FST163209 PDF
IDT74FST163209 Datasheet Preview Page 2 IDT74FST163209 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT74FST163209

Manufacturer:

Integrated Device

File Size:

82.42 KB

Description:

9-bit bus exchange switch.
