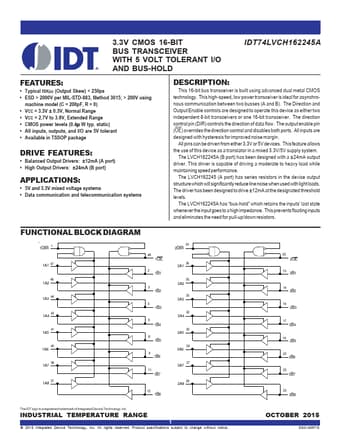

FEATURES : DESCRIPTION : DRIVE FEATURES : APPLICATIONS: - Balanced Output Drivers: ±12m A (A port) - High Output Drivers: ±24m A (B port) - 5V and 3.3V mixed voltage systems - Data munication and telemunication systems This 16-bit bus transceiver is built using advanced dual metal CMOS technology. This high-speed, low power transceiver is ideal for asynchronous munication between two busses (A and B). The Direction and Output Enable controls are designed to operate this device as either two independent 8-bit transceivers or one 16-bit transceiver. The direction control pin (DIR) controls the direction of data flow. The output enable pin (OE) overrides the direction control and disables both ports. All inputs are designed with hysteresis for improved noise margin. All pins can be driven from either 3.3V or 5V devices. This feature allows the use of this device as a translator in a mixed 3.3V/5V supply system. The LVCH162245A (B port) has been designed with a ±24m A output driver. This driver is capable of driving a moderate to heavy load while maintaining speed performance. The LVCH162245 (A port) has series resistors in the device output structure which will significantly reduce line noise when used with light loads. The driver has been designed to drive ±12m A at the designated threshold levels. The LVCH162245A has “bus-hold” which retains the inputs’ last state whenever the input goes to a high impedance. This prevents floating inputs and eliminates the need for pull-up/down resistors. FUNCTIONAL BLOCK DIAGRAM 1DIR 1 48 24 2DIR 1OE 1A1 47 2 46 2OE 2A1 36 13 35 1B1 2A2 2B1 1A2 1B2 1A3 44 5 43 6 33 2B2 2A3 1B3 2B3 2A4 1A4 1B4 1A5 41 8 2B4 2A5 30 19 1B5...
