IDTQS34XVH245 - 2.5V / 3.3V 32-BIT HIGH BANDWIDTH BUS SWITCH

Description

The QS34XVH245 HotSwitch is a high bandwidth 32-bit bus switch.

The QS34XVH245 has very low ON resistance, resulting in under 250ps propagation delay through the switch.

Features

  • N channel FET switches with no parasitic diode to VCC.
  • Isolation under power-off conditions.
  • No DC path to VCC or GND.
  • 5V tolerant in OFF and ON state.
  • 5V tolerant I/Os.
  • Low RON , 4Ω typical.
  • Flat RON characteristics over operating range.
  • Rail-to-rail switching 0 - 5V.
  • Bidirectional dataflow with near-zero delay: no added ground bounce.
  • Excellent RON matching between channels.
  • VCC operation: 2.3.

📥 Download Datasheet

Datasheet Details

Part number IDTQS34XVH245
Manufacturer Integrated Device
File Size 256.39 KB
Description 2.5V / 3.3V 32-BIT HIGH BANDWIDTH BUS SWITCH
Datasheet download datasheet IDTQS34XVH245 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IDTQS34XVH245 2.5V / 3.3V 32-BIT HIGH BANDWIDTH BUS SWITCH Renesas
IDTQS34XVH2245 2.5V / 3.3V 32-BIT HIGH BANDWIDTH BUS SWITCH Integrated Device Technology
IDTQS34XVH2245 2.5V / 3.3V 32-BIT HIGH BANDWIDTH BUS SWITCH Renesas
IDTQS34X2245 HIGH-SPEED CMOS QUICKSWITCH 32-BIT BUS SWITCHES IDT
IDTQS34X245 HIGH-SPEED CMOS QUICKSWITCH 32-BIT BUS SWITCHES Renesas

Other Datasheets by Integrated Device

Part Number Description
IDTQS34X245 HIGH-SPEED CMOS QUICKSWITCH 32-BIT MULTIWIDTH BUS SWITCHES
IDTQS34X383 HIGH-SPEED 32-BIT BUS EXCHANGE SWITCH
IDTQS34XR245 QUICKSWITCH PRODUCTS HIGH-SPEED CMOS QUICKSWITCH 32-BIT LOW RESISTANCE MULTIWIDTHTM BUS SWITCHES
IDTQS3125 HIGH-SPEED CMOS QUADRUPLE BUS SWITCH
IDTQS3126 HIGH-SPEED CMOS QUADRUPLE BUS SWITCH

Full PDF Text Transcription

Click to expand full text

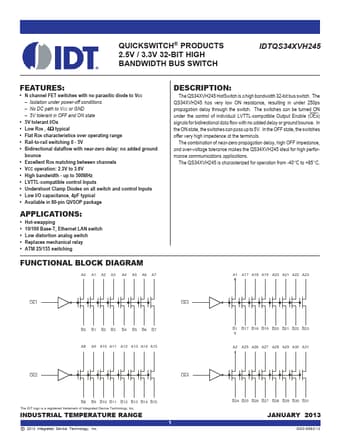

IDTQS34XVH245 2.5V / 3.3V 32-BIT HIGH BANDWIDTH BUS SWITCH INDUSTRIAL TEMPERATURE RANGE QUICKSWITCH® PRODUCTS 2.5V / 3.3V 32-BIT HIGH BANDWIDTH BUS SWITCH IDTQS34XVH245 PRELIMINARY FEATURES: • N channel FET switches with no parasitic diode to VCC – Isolation under power-off conditions – No DC path to VCC or GND – 5V tolerant in OFF and ON state • 5V tolerant I/Os • Low RON , 4Ω typical • Flat RON characteristics over operating range • Rail-to-rail switching 0 - 5V • Bidirectional dataflow with near-zero delay: no added ground bounce • Excellent RON matching between channels • VCC operation: 2.3V to 3.
