IS24C02A

1K-bit/2K-bit/4K-bit/8K-bit/16K-bit 2-WIRE SERIAL CMOS EEPROM

IS24C02A Features

* Two-Wire Serial Interface, I2CTM Compatible

* Bi-directional data transfer protocol

* Wide Voltage Operation

* Vcc = 1.8V to 5.5V

* 400 KHz (2.5V) and 1 MHz (5.0V) Compatible

* Low Power CMOS Technology

* Standby Current less than 6 µA (5.0V)

IS24C02A General Description

The IS24C02A, IS24C04A, IS24C08A, and IS24C16A are electrically erasable PROM devices that use the standard 2-wire interface for communications. The IS24C02A, IS24C04A, IS24C08A, and IS24C16A contain a memory array of 2K-bits (256 x 8), 4K-bits (512 x 8), 8K-bits (1,024 x 8), and 16K-bits (2,048 x 8.

IS24C02A Datasheet (192.39 KB)

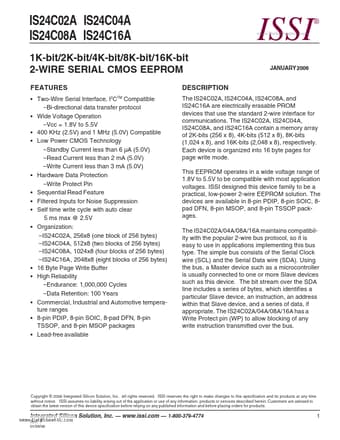

Preview of IS24C02A PDF

Datasheet Details

Part number:

IS24C02A

Manufacturer:

Integrated Silicon Solution

File Size:

192.39 KB

Description:

1k-bit/2k-bit/4k-bit/8k-bit/16k-bit 2-wire serial cmos eeprom.
