F8152 - SAW Bandpass Filter

Integrated Technology Future

Datasheet Details

Part number	F8152
Manufacturer	Integrated Technology Future
File Size	373.51 KB
Description	SAW Bandpass Filter
Datasheet	F8152_IntegratedTechnologyFuture.pdf

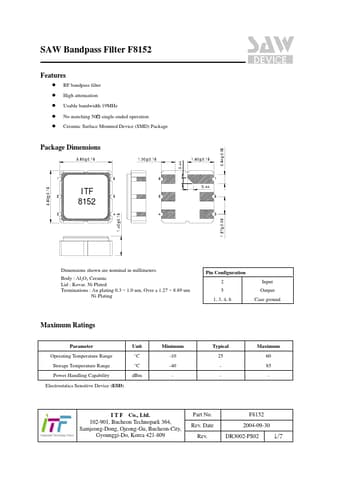

z z z z z RF bandpass filter High attenuation Usable bandwidth 19MHz No matching 50Ω single-ended operation Ceramic Surface Mounted Device (SMD) Package 3.80±0.15 1.00±0.15 0.44 1.90±0.15 1 6 6 0.44 1 2 ITF 8152 3.80±0.15 5 5 2 1.40±0.15 3 4 4 3 1.27±0.05 Dimensions shown are nominal in millimeters Body : Al2O3 Ceramic Lid : Kovar, Ni Plated Terminations : Au plating 0.3 ~ 1.0 um, Over a 1.27 ~ 8.89 um Ni Plating Pin Configuration 2 5 1, 3, 4, 6 Input Output Case ground Maxi.
