87C196JQ Datasheet - Intel Corporation

87C196JQ ADVANCED 16-BIT CHMOS MICROCONTROLLER

Symbol VCC VSS VSS VSS VREF Main supply voltage ( a 5V) Digital circuit ground (0V) There are three VSS pins all of which MUST be connected to a single ground plane Reference for the A D converter ( a 5V) VREF is also the supply voltage to the analog portion of the A D converter and the logic used .
87C196KR KQ 87C196JV JT 87C196JR JQ ADVANCED 16-BIT CHMOS MICROCONTROLLER Automotive Y Y Y Y b 40 C to a 125 C Ambient Y High Performance CHMOS 16-Bit CPU Up to 48 Kbytes of On-Chip EPROM Up to 1 5 Kbytes of On-Chip Register RAM Up to 512 Bytes of Additional RAM (Code RAM) Register-Register Architecture Up to 8 Channel 10-Bit A D with Sample Hold Up to 37 Prioritized Interrupt Sources Up to Seven 8-Bit (56) I O Ports Full Duplex Serial I O Port Dedicated Baud Rate Generator Interprocessor Com.

87C196JQ Features

*  Programmable A D Conversion and S H Times  10 Capture Compare I O with 2 Flexible Timers  Synchronous Serial I O Port for Full Duplex Serial I O  Total Utilization of ALL Available Pins (I O Mux’d with Control)  2 16-Bit Timers with Prescale Cascading and Quadrature Counting Capabilities

87C196JQ Datasheet (324.57 KB)

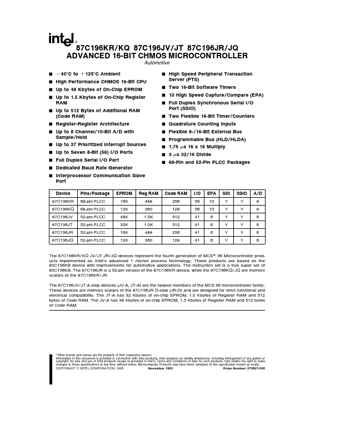

Preview of 87C196JQ PDF
87C196JQ Datasheet Preview Page 2 87C196JQ Datasheet Preview Page 3

Datasheet Details

Part number:

87C196JQ

Manufacturer:

Intel Corporation

File Size:

324.57 KB

Description:

Advanced 16-bit chmos microcontroller.
