87C196JR

ADVANCED 16-BIT CHMOS MICROCONTROLLER

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Rochester Electronics LLC AN87C196JR 16-BIT, OTPROM, 8096 CPU, 16MHZ DigiKey 0 58 units
$5.2

87C196JR Datasheet (324.57 KB)

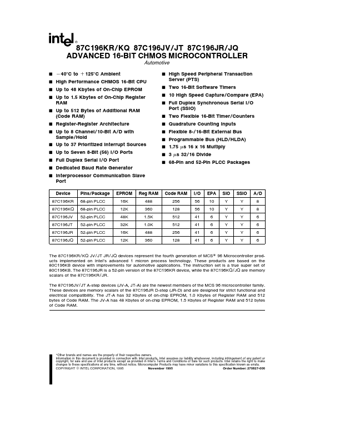

Preview of 87C196JR PDF

Datasheet Details

Part number:

87C196JR

Manufacturer:

Intel Corporation

File Size:

324.57 KB

Description:

Advanced 16-bit chmos microcontroller.
87C196KR KQ 87C196JV JT 87C196JR JQ ADVANCED 16-BIT CHMOS MICROCONTROLLER Automotive Y Y Y Y b 40 C to a 125 C Ambient Y High Performance CHMOS 16-.

87C196JR Features

*  Programmable A D Conversion and S H Times  10 Capture Compare I O with 2 Flexible Timers  Synchronous Serial I O Port for Full Duplex Serial I O  Total Utilization of ALL Available Pins (I O Mux’d with Control)  2 16-Bit Timers with Prescale Cascading and Quadrature Counting Capabilities

87C196JR General Description

Symbol VCC VSS VSS VSS VREF Main supply voltage ( a 5V) Digital circuit ground (0V) There are three VSS pins all of which MUST be connected to a single ground plane Reference for the A D converter ( a 5V) VREF is also the supply voltage to the analog portion of the A D converter and the logic used .
