AN87C196LB CHMOS 16-BIT MICROCONTROLLER

of Product Nomenclature Parameter Temperature and Burn-in Options Packaging Options Program-memory Options Process Information Product Family Device Speed Options A N 7 C 196L x no mark 20 Description Automotive operating temperature range ( *40° C to 125° C ambient) with Intel standard burn-.

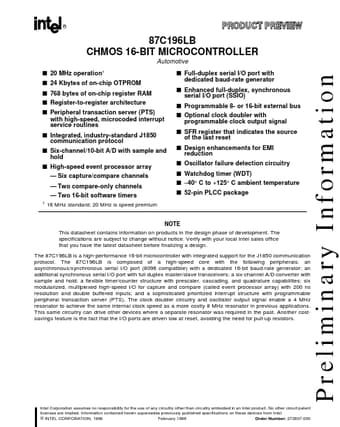

® PRODUCT PREVIEW 87C196LB CHMOS 16-BIT MICROCONTROLLER Automotive s 20 MHz operation† s 24 Kbytes of on-chip OTPROM s 768 bytes of on-chip register RAM s Register-to-register architecture s Peripheral transaction server (PTS) with high-speed, microcoded interrupt service routines s Integrated, industry-standard J1850 communication protocol s Six-channel/10-bit A/D with sample and hold s High-speed event processor array Six capture/compare channels Two compare-only channels.

AN87C196LB Features

* output signal
