LP80C32 - (LP80Cxx) CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER

Product Overview

📥 Download Datasheet

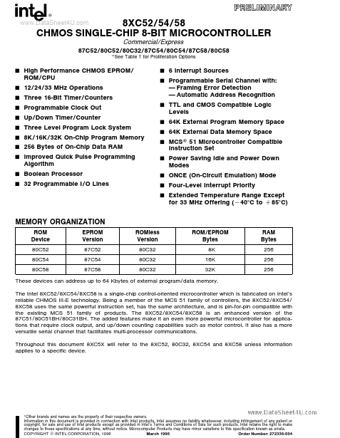

Datasheet preview – LP80C32

Datasheet Details

Part number LP80C32
Manufacturer Intel Corporation
File Size 315.68 KB
Description (LP80Cxx) CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER
Datasheet download datasheet LP80C32 Datasheet
Additional preview pages of the LP80C32 datasheet.

Product details

Description

VCC Supply voltage VSS Circuit ground VSS1 Secondary ground (not on DIP) Provided to reduce ground bounce and improve power supply by-passing NOTE This pin is not a substitute for the VSS pin (pin 22) (Connection not necessary for proper operation ) Port 0 Port 0 is an 8-bit open drain bidirectional I O port As an output port each pin can sink several LS TTL inputs Port 0 pins that have 1’s written to them float and in that state can be used as high-impedance inputs Port 0 is also the multiplex
