LXP730 Datasheet - Intel Corporation

LXP730 Multi-Rate DSL Framer

www.DataSheet4U.com LXP730 Multi-Rate DSL Framer Datasheet The LXP730 is a multi-purpose Digital Subscriber Line (DSL) framer which complements the Level One SK70725/21 Enhanced MDSL Data Pump (EMDP) to provide seamless transport of data and voice signals over one or more DSL datapaths. Applications The LXP730 in combination with the EMDP chipset is optimized for use as a framer or I/O interface device for the following applications: s Digital Pair Gain Systems s Ethernet Modems s s s s T1/E.

LXP730 Features

* The LXP730 provides the basic functions required of a DSL framer: s Synchronization of external data streams to the DSL line s Multiplexing and demultiplexing of independent data streams for voice and data s Loopback of payload data at the DSL interface s Creation, insertion, and recovery of the MDS

LXP730_IntelCorporation.pdf

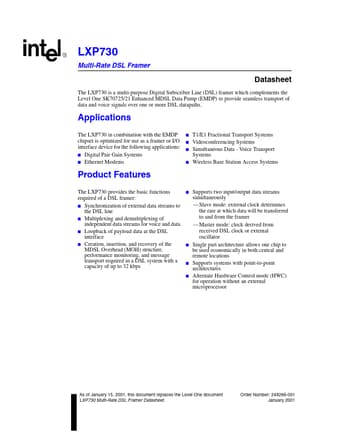

LXP730 Datasheet Preview — Preview of LXP730 PDF

Datasheet Details

Part number:

LXP730

Manufacturer:

Intel Corporation

File Size:

608.20 KB

Description:

Multi-rate dsl framer.
