TN80C51BH

CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER

TN80C51BH Features

* 4 Kbytes of EPROM ROM (87C51 80C51BH respectively) 128 bytes of RAM 32 I O lines two 16-bit timer counters a five-source two-level interrupt structure a full duplex serial port and on-chip oscillator and clock circuitry In addition the MCS 51 CHMOS microcontroller products exhibit low operating powe

TN80C51BH General Description

VCC Supply voltage during normal Idle and Power Down operations VSS Circuit ground VSS1 VSS1 (EPROM PLCC only) secondary ground Provided to reduce ground bounce and improve power supply bypassing NOTE This pin is not a substitute for the VSS pin (pin 22) For ROM and ROMless pin 1 is reserv.

TN80C51BH Datasheet (219.33 KB)

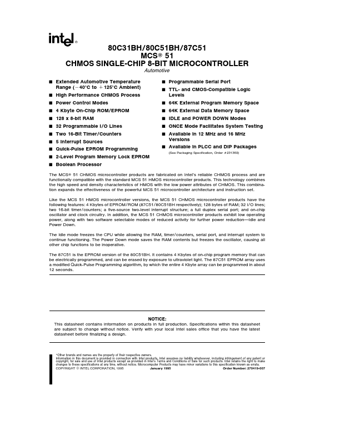

Preview of TN80C51BH PDF

Datasheet Details

Part number:

TN80C51BH

Manufacturer:

Intel Corporation

File Size:

219.33 KB

Description:

Chmos single-chip 8-bit microcontroller.
80C31BH 80C51BH 87C51 MCS 51 CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER Automotive Y Extended Automotive Temperature Range (b40 C to a125 C Ambient) Y H.
