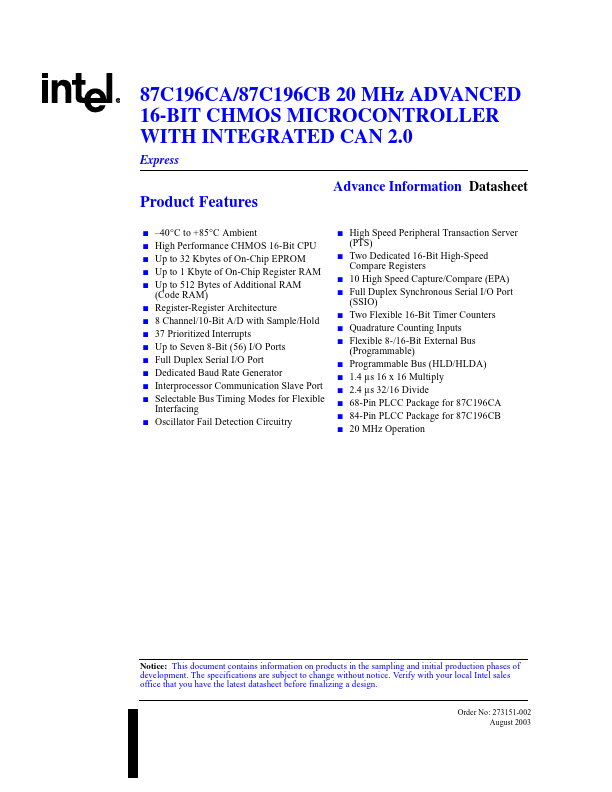

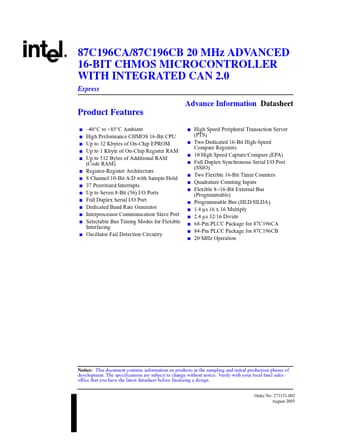

87C196CB
Features
Advance Information Datasheet
- - 40°C to +85°C Ambient
- High Performance CHMOS 16-Bit CPU
- Up to 32 Kbytes of On-Chip EPROM
- Up to 1 Kbyte of On-Chip Register RAM
- Up to 512 Bytes of Additional RAM
(Code RAM)
- Register-Register Architecture
- 8 Channel/10-Bit A/D with Sample/Hold
- 37 Prioritized Interrupts
- Up to Seven 8-Bit (56) I/O Ports
- Full Duplex Serial I/O Port
- Dedicated Baud Rate Generator
- Interprocessor munication Slave Port
- Selectable Bus Timing Modes for Flexible
Interfacing
- Oscillator Fail Detection Circuitry
- High Speed Peripheral Transaction Server (PTS)
- Two Dedicated 16-Bit High-Speed pare Registers
- 10 High Speed Capture/pare (EPA)
- Full Duplex Synchronous Serial I/O Port
(SSIO)
- Two Flexible 16-Bit Timer Counters
- Quadrature Counting Inputs
- Flexible 8-/16-Bit External Bus
(Programmable)
- Programmable Bus (HLD/HLDA)
- 1.4 µs 16 x 16 Multiply
- 2.4 µs 32/16 Divide
- 68-Pin PLCC Package for 87C196CA
- 84-Pin PLCC Package for...
