E28F002BX, E28F200BX Datasheet - Intel

E28F002BX 2-MBIT BOOT BLOCK FLASH MEMORY

2-MBIT (128K x 16 256K x 8) BOOT BLOCK FLASH MEMORY FAMILY 28F200BX-T B 28F002BX-T B Y x8 x16 Input Output Architecture 28F200BX-T 28F200BX-B For High Performance and High Integration 16-bit and 32-bit CPUs Y x8-only Input Output Architecture 28F002BX-T 28F002BX-B For Space Constrained 8-bit Applications Y Upgradeable to Intel’s SmartVoltage Products Y Optimized High-Density Blocked Architecture One 16-KB Protected Boot Block Two 8-KB Parameter Blocks One 96-KB Main Block One 128 KB Main Block.

E28F200BX-Intel.pdf

This datasheet PDF includes multiple part numbers: E28F002BX, E28F200BX. Please refer to the document for exact specifications by model.

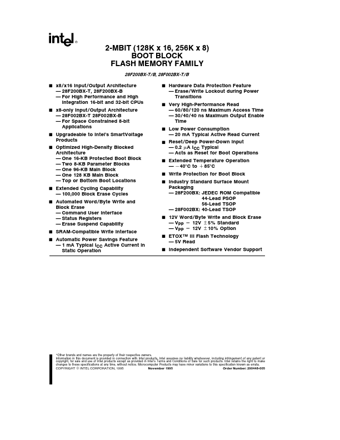

E28F002BX Datasheet Preview Page 2 E28F002BX Datasheet Preview Page 3

Datasheet Details

Part number:

E28F002BX, E28F200BX

Manufacturer:

Intel

File Size:

551.43 KB

Description:

2-mbit boot block flash memory.

Note:

This datasheet PDF includes multiple part numbers: E28F002BX, E28F200BX.
Please refer to the document for exact specifications by model.
