LXT334 Quad Short-Haul Transceiver with Clock Recovery Datasheet The LXT334 is a quad, short-haul, PCM transceiver for 2.048 MHz or 1.544 MHz transmission systems. Its low impedance transmit output drivers provide constant line impedance whether transmitting marks or spaces. The output pulse amplitudes are also constant, stabilized against supply voltage variations. The LXT334 can be configured for balanced 100/120 Ω or unbalanced 75 Ω systems and exceeds the latest ETSI return loss recommendat.

LXT334 Features

* differential receiver architecture with high noise interference margin. It uses peak detection with a variable threshold for reliable recovery of data as low as 500 mV (up to 12 dB of cable attenuation). The fully digital clock recovery system uses a low frequency master clock of 2.048 MHz or 1.544

LXT334 Datasheet (595.17 KB)

Preview of LXT334 PDF

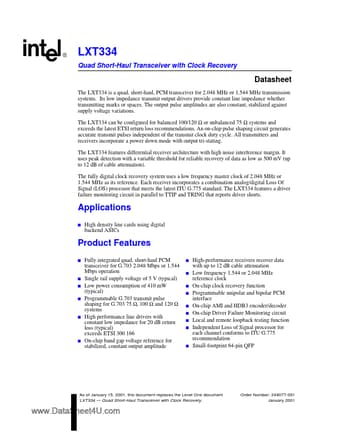

LXT334 Datasheet Preview Page 2 LXT334 Datasheet Preview Page 3

Datasheet Details

Part number:

LXT334

Manufacturer:

Intel

File Size:

595.17 KB

Description:

Quad short haul transceiver.
