Part number:
M87C196KD
Manufacturer:
Intel
File Size:
366.44 KB
Description:
16-bit high-performance chmos microcontrollers with on-chip eprom.
M87C196KD_IntelCorporation.pdf
Datasheet Details
Part number:
M87C196KD
Manufacturer:
Intel
File Size:
366.44 KB
Description:
16-bit high-performance chmos microcontrollers with on-chip eprom.
M87C196KD, 16-BIT HIGH-PERFORMANCE CHMOS MICROCONTROLLERS WITH ON-CHIP EPROM
Symbol VCC VSS VREF Main supply voltage (5V) Digital circuit ground (0V) There are three VSS pins all of which must be connected Reference voltage for the A D converter (5V) VREF is also the supply voltage to the analog portion of the A D converter and the logic used to read Port 0 Must be connecte

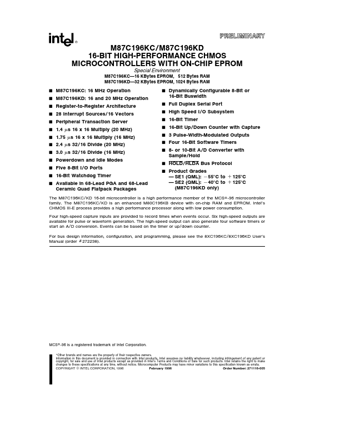

M87C196KC M87C196KD 16-BIT HIGH-PERFORMANCE CHMOS MICROCONTROLLERS WITH ON-CHIP EPROM Special Environment M87C196KC 16 KBytes EPROM 512 Bytes RAM M87C196KD 32 KBytes EPROM 1024 Bytes RAM Y Y Y Y Y Y Y Y Y Y Y Y Y M87C196KC 16 MHz Operation M87C196KD 16 and 20 MHz Operation Register-to-Register Architecture 28 Interrupt Sources 16 Vectors Peripheral Transaction Server 1 4 ms 16 x 16 Multiply (20 MHz) 1 75 ms 16 x 16 Multiply (16 MHz) 2 4 ms 32 16 Divide (20 MHz) 3 0 ms 32 16 Divide (16 MHz) Powe
