N87C196MH

INDUSTRIAL MOTOR CONTROL MICROCONTROLLER

Intel

N87C196MH Features

* an enhanced three-phase waveform generator specifically designed for use in “inverter” motor-control applications. This peripheral provides pulsewidth modulation and three-phase sine wave generation with minimal CPU intervention. It generates three complementary non-overlapping PWM pulses with resol

N87C196MH General Description

Notes NOTES: 1. Unless otherwise noted, write 0FFH to reserved memory locations and write 0 to reserved SFR bits. 2. WARNING: The contents and/or function of reserved locations may change with future revisions of the device. 3. Code executed in locations 0000H to 02FFH will be forced external. 4 .

N87C196MH Datasheet (420.91 KB)

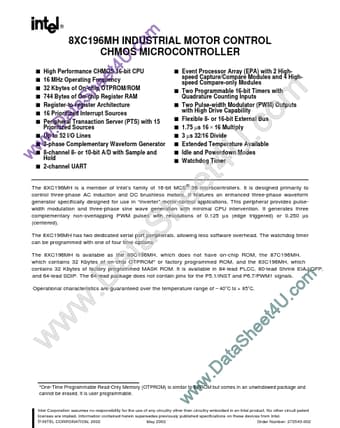

N87C196MH Datasheet Preview — Preview of N87C196MH PDF

Datasheet Details

Part number:

N87C196MH

Manufacturer:

Intel

File Size:

420.91 KB

Description:

Industrial motor control microcontroller.
® 8XC196MH INDUSTRIAL MOTOR CONTROL CHMOS MICROCONTROLLER s High Performance CHMOS 16-bit CPU s 16 MHz Operating Frequency s 32 Kbytes of On-chip OTP.
