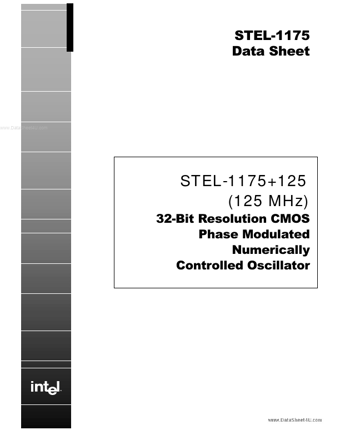

STEL-1175 Datasheet - Intel

STEL-1175 32-Bit Resolution CMOS Phase Modulated Numerically Controlled Oscillator

The STEL-1175 Modulated Numerically Controlled Oscillator (MNCO) uses digital techniques to provide a cost-effective solution for low noise signal sources. The device can operate at clock frequency up to 125 MHz and provides high frequency resolution and high spectral purity of outputs up to 50 MHz..

STEL-1175 Features

* s VERY HIGH CLOCK FREQUENCY - 125 MHz MAXIMUM OVER FULL MILITARY TEMPERATURE RANGE HIGH FREQUENCY RESOLUTION - 32-BITS, 30 milli-Hz @ 125 MHz WIDE OUTPUT BANDWIDTH - 0 TO 50 MHz @ 125 MHz CLOCK SHORT CLOCK TO OUTPUT DELAY FOR DIRECT CLOCK CONNECT TO 1175 AND DAC PRECISION PHASE MODULATION TYPICAL A
