TE28F200BV, TE28F002BV Datasheet - Intel

TE28F200BV 2-MBIT SmartVoltage BOOT BLOCK FLASH MEMORY

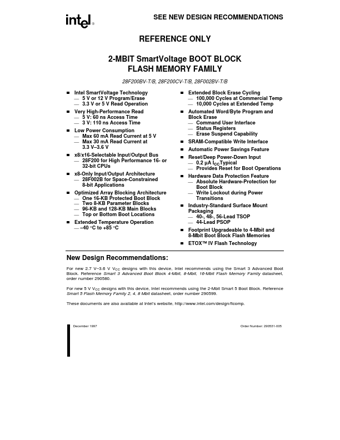

E SEE NEW DESIGN RECOMMENDATIONS REFERENCE ONLY 2-MBIT SmartVoltage BOOT BLOCK FLASH MEMORY FAMILY 28F200BV-T/B, 28F200CV-T/B, 28F002BV-T/B n Intel SmartVoltage Technology  5 V or 12 V Program/Erase  3.3 V or 5 V Read Operation n Very High-Performance Read  5 V: 60 ns Access Time  3 V: 110 ns Access Time n Low Power Consumption  Max 60 mA Read Current at 5 V  Max 30 mA Read Current at 3.3 V 3.6 V n x8/x16-Selectable Input/Output Bus  28F200 for High Performance 16- or 32-bit .

TE28F002BV-Intel.pdf

This datasheet PDF includes multiple part numbers: TE28F200BV, TE28F002BV. Please refer to the document for exact specifications by model.
TE28F200BV Datasheet Preview Page 2 TE28F200BV Datasheet Preview Page 3

Datasheet Details

Part number:

TE28F200BV, TE28F002BV

Manufacturer:

Intel

File Size:

589.13 KB

Description:

2-mbit smartvoltage boot block flash memory.

Note:

This datasheet PDF includes multiple part numbers: TE28F200BV, TE28F002BV.
Please refer to the document for exact specifications by model.
