2N6550

N-Channel JFET

2N6550 Features

* InterFET N0450L Geometry

* Low Noise: 0.9 nV/√Hz Typical

* High Gain: 25mS Minimum

* RoHS Compliant

* SMT, TH, and Bare Die Package options. Applications

* Low-Noise, High Gain Amplifiers Description The -20V InterFET 2N6550 is targeted for sensitive

2N6550 General Description

The -20V InterFET 2N6550 is targeted for sensitive amplifier stages for mid-frequencies designs. The 2N6550 has a cutoff voltage of less than 3.0V ideal for low-level power supplies. The TO-46 package is hermetically sealed and suitable for military applications. Gate/Case Drain 2 Source Source 1 D.

2N6550 Datasheet (407.00 KB)

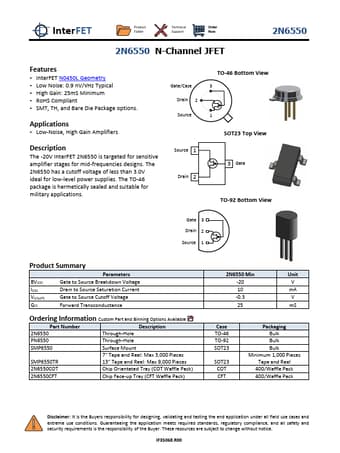

Preview of 2N6550 PDF

Datasheet Details

Part number:

2N6550

Manufacturer:

InterFET Corporation

File Size:

407.00 KB

Description:

N-channel jfet.
