IF170B, IF170A - N-Channel JFET

InterFET

📥 Download Datasheet

IF170B Datasheet Preview — This datasheet PDF includes multiple part numbers: IF170B, IF170A. Please refer to the document for exact specifications by model.

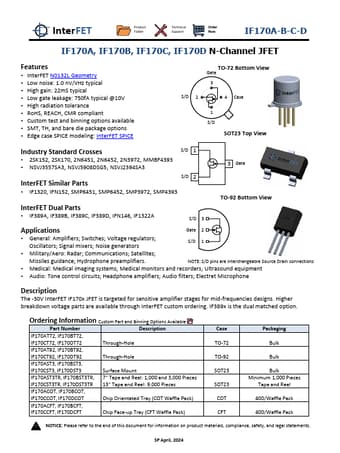

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IF170B, IF170A
Manufacturer	InterFET
File Size	655.36 KB
Description	N-Channel JFET
Datasheet	IF170A-InterFET.pdf
Note	This datasheet PDF includes multiple part numbers: IF170B, IF170A. Please refer to the document for exact specifications by model.

IF170B Product details

Description

The -30V InterFET IF170x JFET is targeted for sensitive amplifier stages for mid-frequencies designs.

Features

InterFET N0132L Geometry.
Low noise: 1.0 nV/√Hz typical.
High gain: 22mS typical.
Low gate leakage: 750fA typical @10V.
High radiation tolerance.
RoHS, REACH, CMR compliant.
Custom test and binning options available.
SMT, TH, and bare die package options.
Edge case SPICE modeling: InterFET SPICE TO-72 Bottom View Gate 3 S/D 2 4 Case 1 S/D SOT23 Top View Industry Standard Crosses S/D 1.
2SK152, 2SK17.
