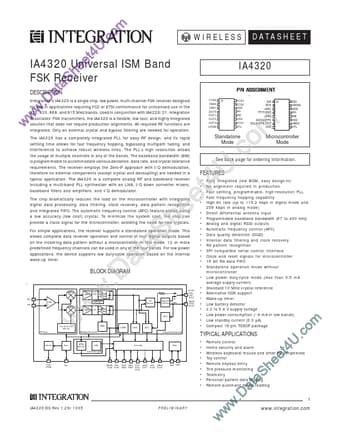

IA4320
DESCRIPTION
Integration’s IA4320 is a single chip, low power, multi-channel FSK receiver designed for use in applications requiring FCC or ETSI conformance for unlicensed use in the 315, 433, 868, and 915 MHz bands. Used in conjunction with IA4220/21, Integration Associates’ FSK transmitters, the IA4320 is a flexible, low cost, and highly integrated solution that does not require production alignments. All required RF functions are integrated. Only an external crystal and bypass filtering are needed for operation.
4 t e
. m o c
WIRELESS
PIN ASSIGNMENT
FCS0 FBS0 FBS1 OUT0 OUT1 OUT2 OUT3 LPDM FCS3 FCS2 VDD IN1 IN2 VSS FCS1 XTL
SDI SCK n SEL FFIT/SDO n IRQ DATA/n FFS DCLK/CFIL/FFIT CLK VDI ARSSI VDD IN1 IN2 VSS n RES XTL w w w
.D a t a
The IA4320 has a pletely integrated PLL for easy RF design, and its rapid settling time allows for fast frequency hopping, bypassing multipath fading, and interference to achieve robust wireless links. The PLL’s high resolution...
