SC464 - Motherboard Clock

Datasheet Summary

Description

OSCin, OSCout - These pins form an on-chip reference oscillator when connected to terminals of an external parallel resonant crystal (nominally 14.318 MHz).

OSCin may also serve as an input for an externally generated reference signal.

S0, S1, and S2 - Standard frequency select inputs.

Features

  • T Generates All Essential Clock Signals for the Motherboards T 4V to 7V Operating Supply Range T Supports 8086, 80286, 80386 and 80486 Including S Series ® and Pentium™ Based Designs T Supports ISA, VESA, and PCI Based Designs T Supports GREEN PC.

📥 Download Datasheet

Datasheet preview – SC464

Datasheet Details

Part number SC464
Manufacturer International Microcircuits
File Size 343.95 KB
Description Motherboard Clock
Datasheet download datasheet SC464 Datasheet
Additional preview pages of the SC464 datasheet.

📁 Similar Datasheet

  • SC4643 - programmable linear Hall sensor (Semiment)
  • SC4645 - programmable linear Hall sensor (Semiment)
  • SC4601 - Step Down Controller (Semtech Corporation)
  • SC4602A - Step Down Controller (Semtech Corporation)
  • SC4602B - Step Down Controller (Semtech Corporation)
  • SC4603 - High Efficiency Synchronous Buck (Semtech Corporation)
  • SC4605 - Step Down Controller (Semtech Corporation)
  • SC4607 - High Efficiency Synchronous Buck (Semtech Corporation)
  • SC4608 - High Efficiency Synchronous Buck (Semtech Corporation)
  • SC4609 - High Efficiency Synchronous Buck (Semtech Corporation)
Other Datasheets by International Microcircuits

    Full PDF Text Transcription

    Click to expand full text

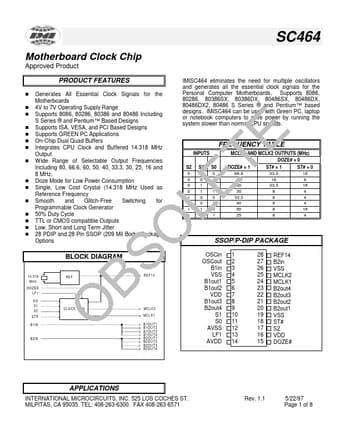

    Motherboard Clock Chip Approved Product PRODUCT FEATURES T Generates All Essential Clock Signals for the Motherboards T 4V to 7V Operating Supply Range T Supports 8086, 80286, 80386 and 80486 Including S Series ® and Pentium™ Based Designs T Supports ISA, VESA, and PCI Based Designs T Supports GREEN PC Applications T On-Chip Dual Quad Buffers T Integrates CPU Clock and Buffered 14.318 MHz Output T Wide Range of Selectable Output Frequencies Including 80, 66.6, 60, 50, 40, 33.3, 30, 25, 16 and 8 MHz. T Doze Mode for Low Power Consumption T Single, Low Cost Crystal (14.
