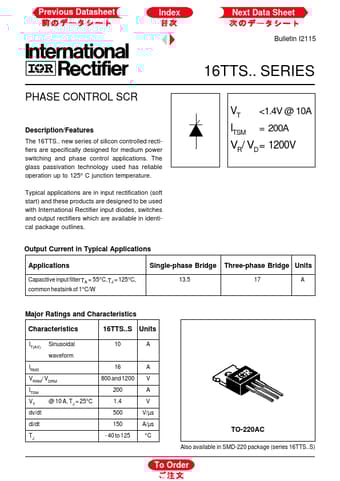

Bulletin I2115
16TTS.. SERIES
PHASE CONTROL SCR VT
Description/Features
The 16TTS.. new series of silicon controlled rectifiers are specifically designed for medium power switching and phase control applications. The glass passivation technology used has reliable operation up to 125° C junction temperature. Typical applications are in input rectification (soft start) and these products are designed to be used with International Rectifier input diodes, switches and output rectifiers which are available in identical package outlines.
<1.4V @ 10A = 200A
ITSM
VR/ VD = 1200V
Output Current in Typical Applications Applications
Capacitive input filter TA = 55°C,TJ = 125°C, common heatsink of 1°C/W
Single-phase Bridge
13.
