1N3891R - FAST RECOVERY DIODES

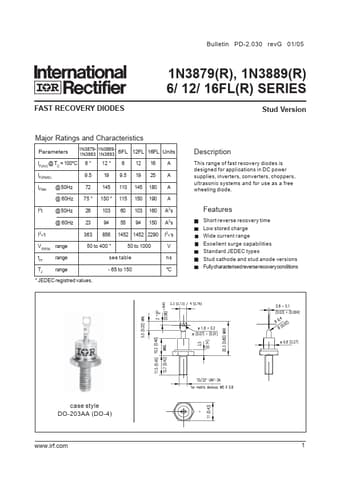

FAST RECOVERY DIODES Bulletin PD-2.030 revG 01/05 1N3879(R), 1N3889(R) 6/ 12/ 16FL(R) SERIES Stud Version Major Ratings and Characteristics Parameters 1N3879- 1N38891N3883 1N3893 6FL 12FL 16FL Units IF(AV)@ TC = 100°C 6 12 6 12 16 A IF(RMS) 9.5 19 9.5 19 25 A IFSM @50Hz 72 145 110 145 180 A @ 60Hz 75 150 115 150 190 A I2t @50Hz 26 103 60 103 160 A2s @ 60Hz 23 94 55 94 150 A2s I2√t 363 856 1452 1452 2290 I2√s VRRM range 50 to 400 50 to 1000 trr ran

1N3891R Features

* Short reverse recovery time Low stored charge Wide current range Excellent surge capabilities Standard JEDEC types Stud cathode and stud anode versions Fullycharacterisedreverserecoveryconditions case style DO-203AA (DO-4) www.irf.com 1 1N3
