40EPS08, 40EPS, INPUT RECTIFIER DIODE

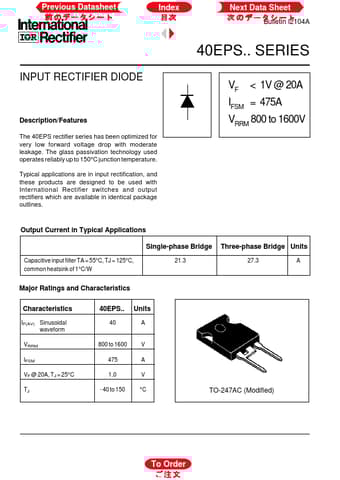

Previous Datasheet Index Next Data Sheet Bulletin I2104A 40EPS..SERIES INPUT RECTIFIER DIODE VF < 1V @ 20A IFSM = 475A .
Features The 40EPS rectifier series has been optimized for very low forward voltage drop with moderate leakage.

datasheet Preview Page 1 from Datasheet4u.com

40EPS_InternationalRectifier.pdf

40EPS08 Datasheet Preview — This datasheet PDF includes multiple part numbers: 40EPS08, 40EPS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

40EPS08, 40EPS

Manufacturer:

International Rectifier

File Size:

151.61 KB

Description:

INPUT RECTIFIER DIODE

Note:

This datasheet PDF includes multiple part numbers: 40EPS08, 40EPS.
Please refer to the document for exact specifications by model.

Applications

* are in input rectification, and these products are designed to be used with International Rectifier switches and output rectifiers which are available in identical package outlines. VRRM 800 to 1600V Output Current in Typical Applications Single-phase Bridge Capacitive input filter TA = 55°C, TJ =
