50WQ10FN SCHOTTKY RECTIFIER

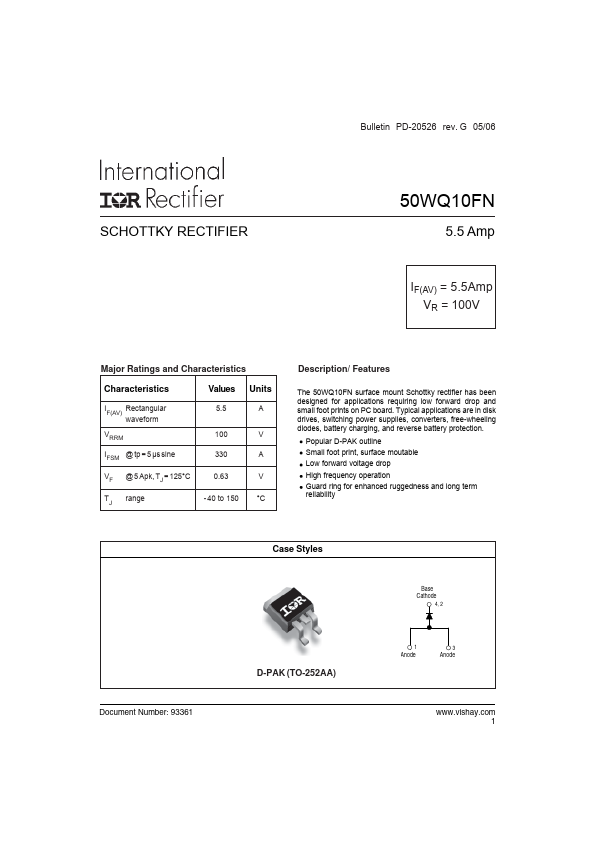

📥 Download Datasheet  Datasheet Preview Page 1

Description

Bulletin PD-20526 rev.E 03/03 50WQ10FN SCHOTTKY RECTIFIER 5.5 Amp D-Pak (TO-252AA) Major Ratings and Characteristics Characteristics IF(AV) Rectang.
Features The 50WQ10FN surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC boar.

📥 Download Datasheet

Preview of 50WQ10FN PDF

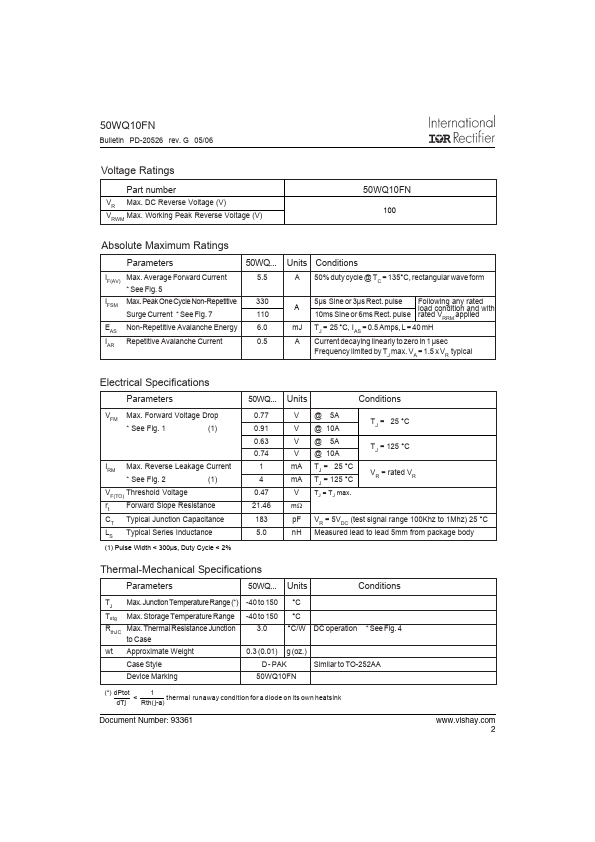

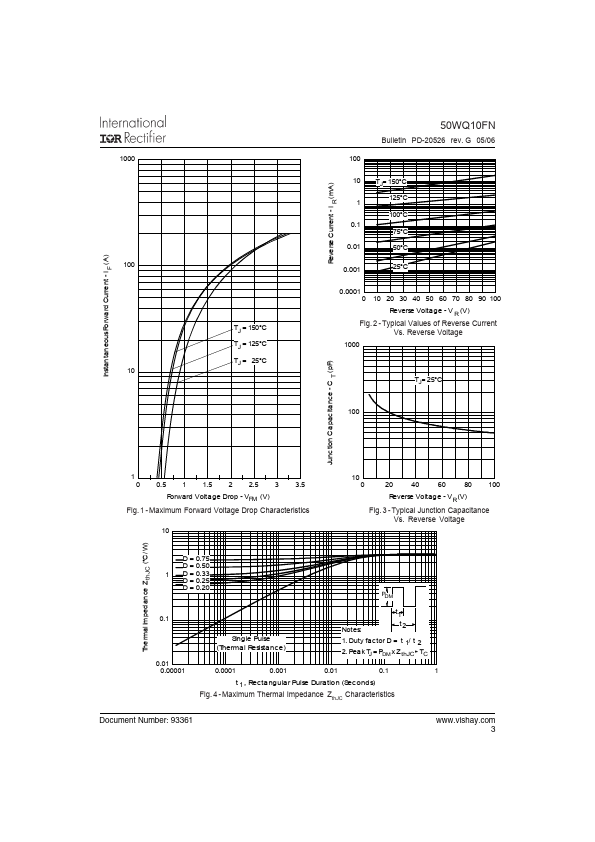

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
50WQ10FN
Manufacturer
International Rectifier
File Size
71.12 KB
Datasheet
50WQ10FN_InternationalRectifier.pdf
Description
SCHOTTKY RECTIFIER

Applications

* requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, free-wheeling diodes, battery charging, and reverse battery protection. Popular D-PAK outline Small foot print, surface moutable Low forward voltage drop High
