AFL12009S, AFL120xxS, HYBRID-HIGH RELIABILITY DC/DC CONVERTER

PD-94447D HYBRID-HIGH RELIABILITY DC/DC CONVERTER AFL120XXS SERIES 120V Input, Single Output .
The AFL Series of DC/DC converters feature high power density with no derating over the full military temperature range.

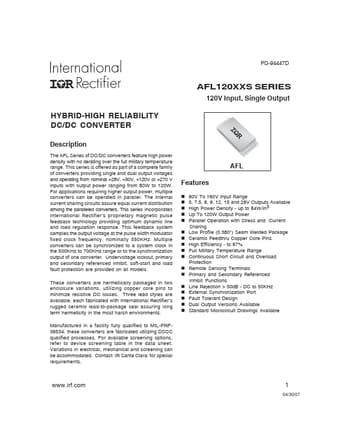

datasheet Preview Page 1 from Datasheet4u.com

AFL120xxS_InternationalRectifier.pdf

AFL12009S Datasheet Preview — This datasheet PDF includes multiple part numbers: AFL12009S, AFL120xxS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AFL12009S, AFL120xxS

Manufacturer:

International Rectifier

File Size:

210.48 KB

Description:

HYBRID-HIGH RELIABILITY DC/DC CONVERTER

Note:

This datasheet PDF includes multiple part numbers: AFL12009S, AFL120xxS.
Please refer to the document for exact specifications by model.

Features

* n 80V To 160V Input Range n n 5, 7.5, 8, 9, 12, 15 and 28V Outputs Available High Power Density - up to 84W/in3 n Up To 120W Output Power n Parallel Operation with Stress and Current Sharing n Low Profile (0.380") Seam Welded Package n Ceramic Feedthru Copper Core Pins n High Efficiency - t

Applications

* requiring higher output power, multiple converters can be operated in parallel. The internal current sharing circuits assure equal current distribution among the paralleled converters. This series incorporates International Rectifier’s proprietary magnetic pulse feedback technology providing optimum
