AUIR3200S Datasheet - International Rectifier

MOSFET DRIVER

AUIR3200S Features

* Bootstrap and charge pump Over temperature shutdown (with Ptc interface) Short circuit protection (Vds detection) Reverse battery protection (turns On the MOSFET) Diagnostic ESD protection Product Summary Operating voltage 6-36V Vgate 6V

AUIR3200S General Description

The AUIR3200S is a high side mosfet driver for very low Rdson automotive application. It offers over-current, overtemperature protection and diagnostic. The over-current protection is done by monitoring the Vds voltage, the threshold is programmable by external resistor. The overtemperature protecti.

AUIR3200S Datasheet (658.58 KB)

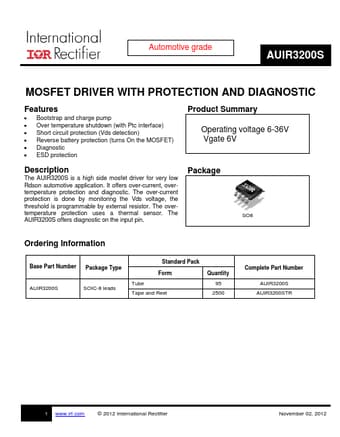

AUIR3200S Datasheet Preview — Preview of AUIR3200S PDF

Datasheet Details

Part number:

AUIR3200S

Manufacturer:

International Rectifier

File Size:

658.58 KB

Description:

Mosfet driver.
