HFA08TB120 - Ultrafast/ Soft Recovery Diode

HFA08TB120 Description

Bulletin PD -2.383 rev.C 11/00 HFA08TB120 HEXFRED TM Ultrafast, Soft Recovery Diode BASE CATHODE .
International Rectifier's HFA08TB120 is a state of the art ultra fast recovery diode.

HFA08TB120 Features

* Ultrafast Recovery Ultrasoft Recovery Very Low IRRM Very Low Qrr Specified at Operating Conditions 4 VR = 1200V VF (typ. )
* = 2.4V IF (AV) = 8.0A Qrr (typ. )= 140nC 2 1 CATHODE 3 ANODE 2 IRRM (typ. ) = 4.5A trr (typ. ) = 28ns di(rec) M /dt (typ.

HFA08TB120 Applications

* in power supplies and power conversion systems (such as inverters), motor drives, and many other similar applications where high speed, high efficiency is needed. Absolute Maximum Ratings Parameter VR IF @ TC = 100°C IFSM IFRM PD @ TC = 25°C PD @ TC = 100°C TJ TSTG
* 125°C 1 Max 1200 8.0 130 3

📥 Download Datasheet

Preview of HFA08TB120 PDF

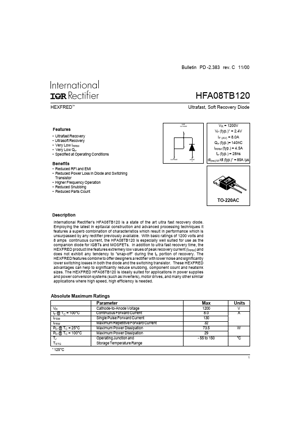

datasheet Preview Page 2 datasheet Preview Page 3
