HFA40HF120C

Soft Recovery Diode

HFA40HF120C Features

* Reduced RFI and EMI

* Reduced snubbing

* Extensive characterization of recovery parameters

* Hermetic package

* Surface mount PD-91797D Product Summary

* VR : 1200V

* VF: 4.4V

* trr: 100ns

* Qrr: 370nC

* di(rec)M/dt:

HFA40HF120C General Description

HFA40HF120C is part of the IR HiRel family of products. These Ultrafast, soft recovery diodes are optimizedto reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifi.

HFA40HF120C Datasheet (488.36 KB)

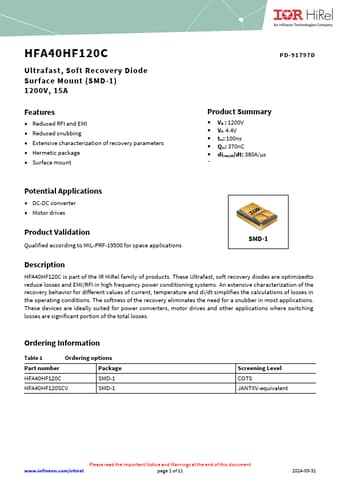

Preview of HFA40HF120C PDF

Datasheet Details

Part number:

HFA40HF120C

Manufacturer:

International Rectifier

File Size:

488.36 KB

Description:

Soft recovery diode.
