IG1NT052N10R - Radiation Hardened GaN transistor

Datasheet Summary

Description

IG1NT052N10R is part of the IR HiRel family of products.

IR HiRel radiation hardened GaN transistor technology provides high performance power devices for space applications.

These devices have been characterized for both Total Ionizing Dose (TID) and Single Event Effects (SEE).

Features

  • Single event effect (SEE) hardened up to LET (GAN) 1 = 70 MeV. cm2/mg (Au ion).
  • Ultra low RDS(on).
  • Low total gate charge.
  • Zero reverse recovery charge.
  • Hermetically sealed ceramic package.
  • Surface mount.
  • Light weight.
  • ESD rating: Class 1C per MIL-STD-750, Method 1020 Product Summary.
  • VDS max: 100V.
  • ID: 52A.
  • RDS(on) max : 6.0m.
  • QG max: 13nC.
  • Size: 7.1mm x 5.3mm.
  • REF: MIL.

📥 Download Datasheet

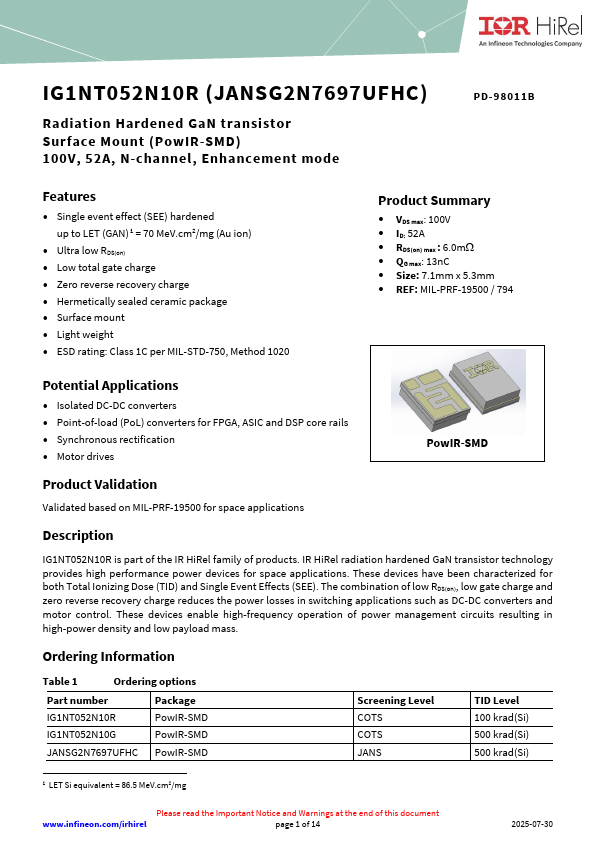

Datasheet preview – IG1NT052N10R

📁 Similar Datasheet

  • IG100-09 - IGBT DC/DC Converters (MicroPower Direct)
  • IG100-09D - IGBT DC/DC Converters (MicroPower Direct)
  • IG120-12 - IGBT DC/DC Converters (MicroPower Direct)
  • IG120-12W - IGBT DC/DC Converters (MicroPower Direct)
  • IG120-15 - IGBT DC/DC Converters (MicroPower Direct)
  • IG120-24 - IGBT DC/DC Converters (MicroPower Direct)
  • IG136-15 - IGBT DC/DC Converters (MicroPower Direct)
Other Datasheets by International Rectifier

    Full PDF Text Transcription

    Click to expand full text
    IG1NT052N10R (JANSG2N7697UFHC) Radiation Hardened GaN transistor Surface Mount (PowIR-SMD) 100V, 52A, N-channel, Enhancement mode PD-98011B Features • Single event effect (SEE) hardened up to LET (GAN) 1 = 70 MeV.cm2/mg (Au ion) • Ultra low RDS(on) • Low total gate charge • Zero reverse recovery charge • Hermetically sealed ceramic package • Surface mount • Light weight • ESD rating: Class 1C per MIL-STD-750, Method 1020 Product Summary • VDS max: 100V • ID: 52A • RDS(on) max : 6.0m • QG max: 13nC • Size: 7.1mm x 5.
