IPS7091SPBF

INTELLIGENT POWER HIGH SIDE SWITCH

IPS7091SPBF Features

* Over temperature shutdown (with auto-restart)

* Short circuit protection (current limit)

* Active clamp

* Open load detection

* Logic ground isolated from power ground

* ESD protection

* Ground loss protection

* Status feedback Descri

IPS7091SPBF General Description

The IPS7091(G)(S)PbF is a five terminal Intelligent Power Switch (IPS) with built in short circuit, over-temperature, ESD protection, inductive load capability and diagnostic feedback. The output current is limited at Ilim value. Current limitation is activated until the thermal protection acts. The.

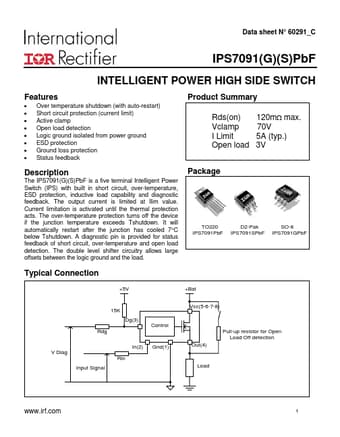

IPS7091SPBF Datasheet (629.95 KB)

Preview of IPS7091SPBF PDF

Datasheet Details

Part number:

IPS7091SPBF

Manufacturer:

International Rectifier

File Size:

629.95 KB

Description:

Intelligent power high side switch.
