IR1153S

uPFC ONE CYCLE CONTROL IC

International Rectifier

IR1153S Features

* PFC IC with IR proprietary “One Cycle Control”

* Continuous conduction mode boost type PFC

* Fixed 22.2kHz switching frequency

* Average current mode control

* Input line sensed brownout protection

* Output overvoltage protection

* Open loop

IR1153S General Description

The μPFC IR1153 power factor correction IC, based on IR proprietary "One Cycle Control" (OCC) technique, provides for high PF, low THD and excellent DC Bus regulation while enabling drastic reduction in component count, PCB area and design time as compared to traditional solutions. The IC is designe.

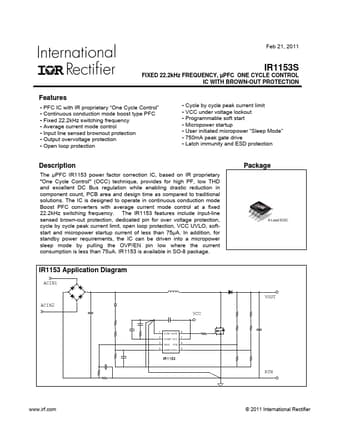

IR1153S Datasheet (409.98 KB)
