IR11867-E02 - 120A Automotive Power Steering Power Module

International Rectifier

Datasheet Details

Part number	IR11867-E02
Manufacturer	International Rectifier ↗
File Size	271.84 KB
Description	120A Automotive Power Steering Power Module
Datasheet	IR11867-E02_InternationalRectifier.pdf

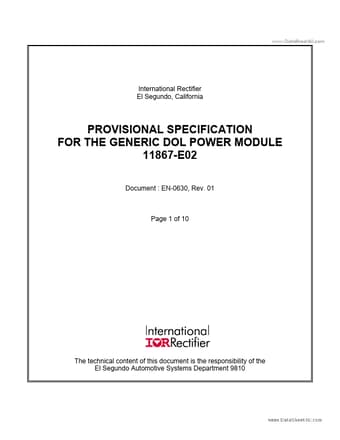

The power module is to be mounted using a thermally conductive adhesive and screws between the module and the steering housing. B - - - Current Sense Resistor Current sensing is achieved through a low inductance, 0.3 mΩ shunt resistor, which is connected between the ground terminal GND and the source of 3 Low side MOSFETs. Accuracy of the current sense resistor is +/- 1%. Accuracy of the current signal will be based on characterization results upon customer approval. Current sense resistor.
