IR2104 Datasheet, driver equivalent, International Rectifier

IR2104 Features

• Driver
• Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune
• Gate drive supply range from 10 to 2

PDF File Details

Part number:

IR2104

Manufacturer:

International Rectifier

File Size:

205.08kb

Download:

📄 Datasheet

Description:

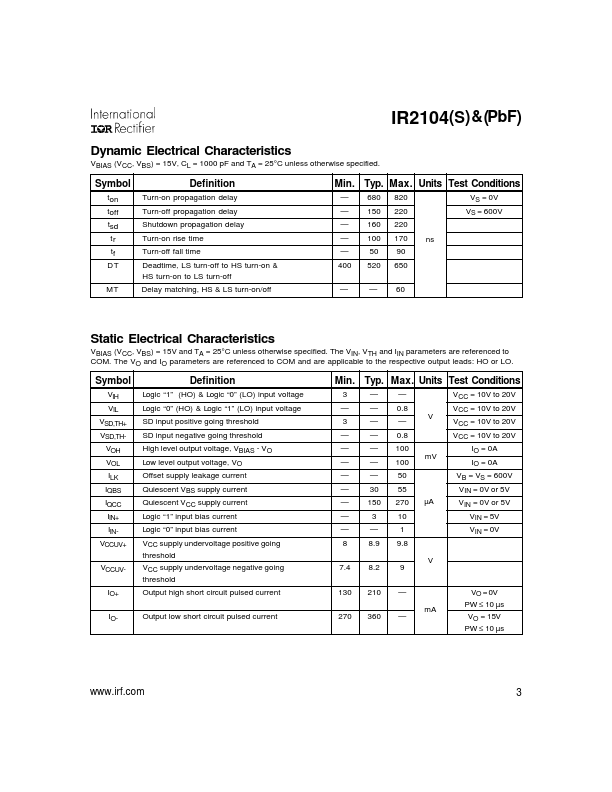

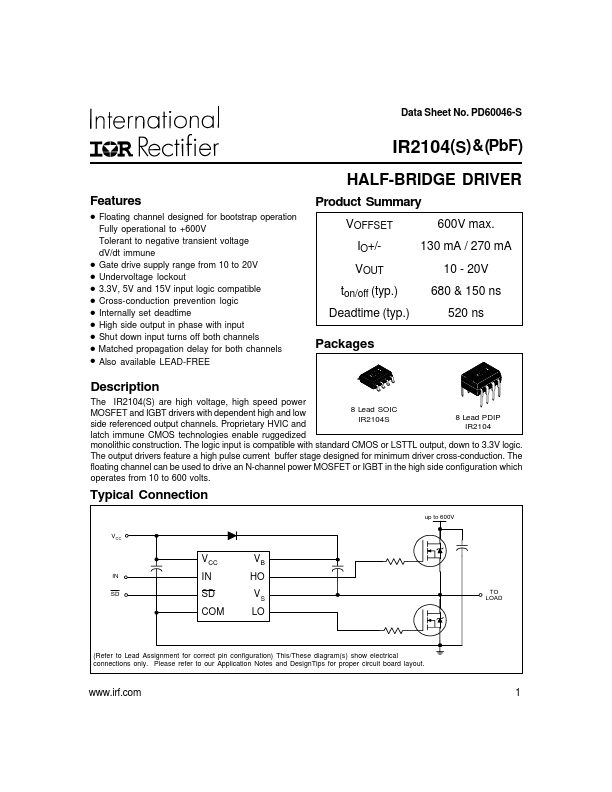

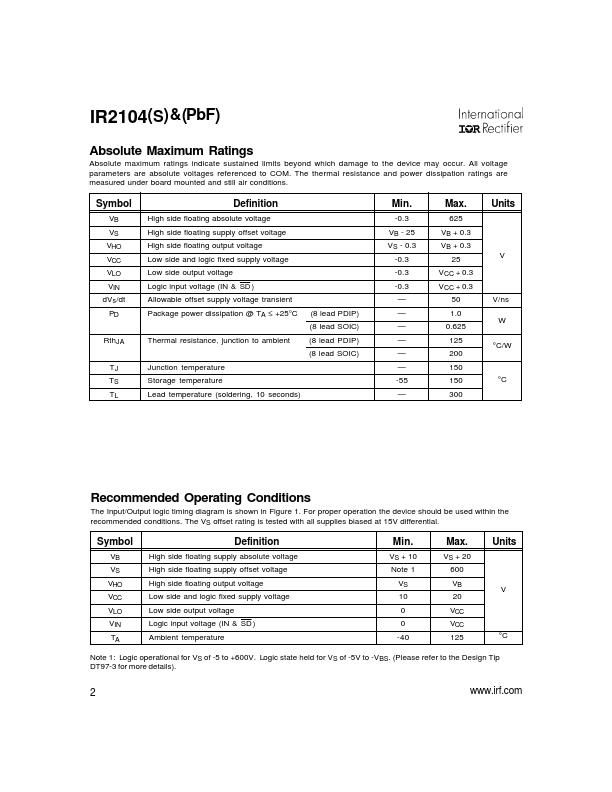

High and low side driver. The IR2104/IR21044 are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output chan
